Product Description

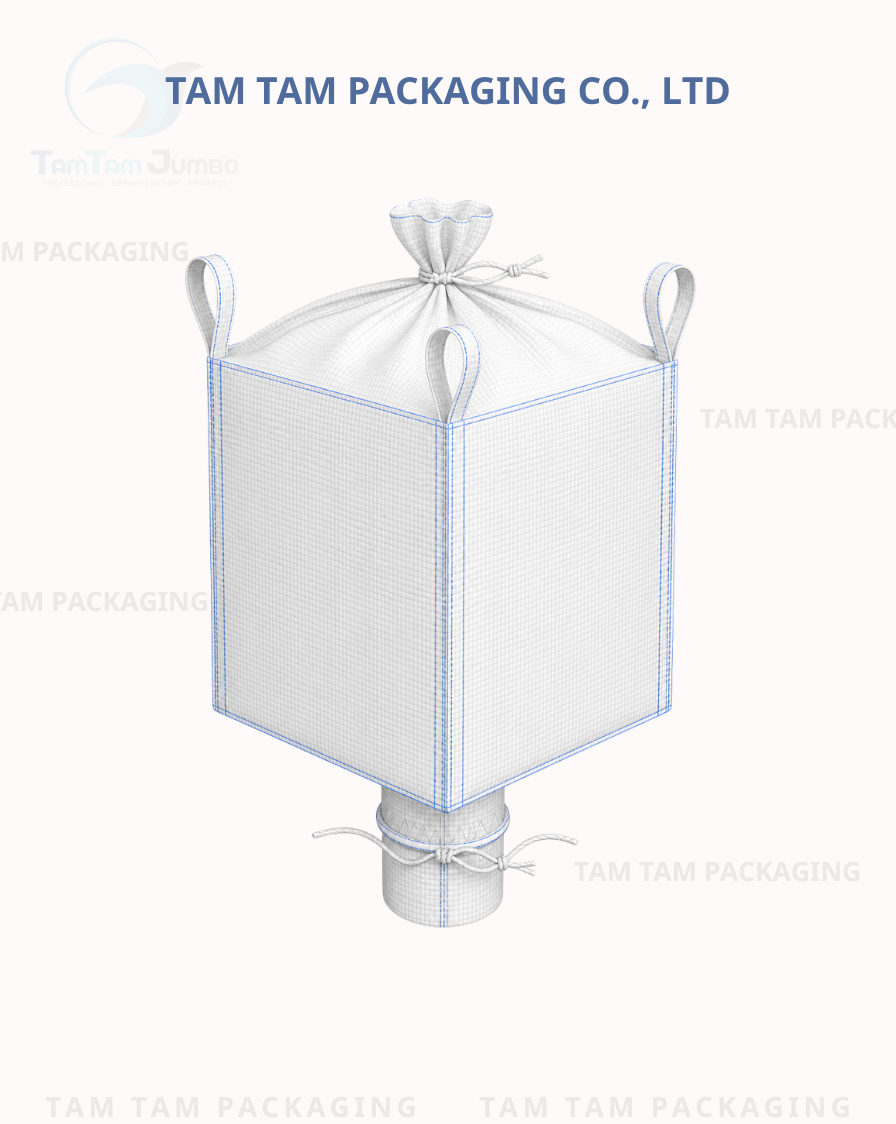

The Type A 4-Panel FIBC Bag is designed for buyers who need every cubic centimetre of container or warehouse space. By stitching four individual fabric panels together, this design achieves a true square or rectangular profile when filled, eliminating the sidewall bulging common in U-Panel and circular bags.
The result is up to 20% better space utilisation per container load, translating directly to lower freight costs for exporters and importers.
Why Choose This Bag?
- True square profile when filled — maximises container and pallet utilisation
- Reduced sidewall bulge improves stacking height and warehouse density
- Each panel can be individually tensioned for superior load stability
- Ideal for automated palletising and robotic warehousing systems
- Premium finish suits retail or display-facing supply chains
Typical Applications Industries
- Export-packed food ingredients (flour, sugar, rice, salt)
- Pharmaceutical and nutraceutical powders
- High-value chemical powders requiring container optimisation
- Plastic resins and masterbatch granules
- Any application where the maximum container fill rate is critical
Technical Specifications
| Construction | 4-Panel (4 separate side panels + base panel) |
| Type | Type A (non-conductive, no static protection) |
| Safe Working Load (SWL) | 500 kg – 2,000 kg |
| Safety Factor | 5:1 (single-use) / 6:1 (multi-trip) |
| Fabric | 100% Virgin PP woven, UV-stabilised |
| Fabric Weight (GSM) | 110 – 250 gsm |
| Coating | Coated or Uncoated |
| Lifting Loops | 4 corner loops (standard) |
| Top Options | Open top / Spout top / Duffle top |
| Bottom Options | Flat bottom / Discharge spout / Conical discharge |
| Liner | Optional PE or aluminium liner |
| Printing | Up to 4-colour flexographic printing |
| Dimensions | Custom — typical: 90×90×110 cm to 105×105×125 cm |
| Certification | ISO 21898 compliant; SGS tested |
Frequently Asked Questions
Q1: How much more space do 4-Panel bags save vs U-Panel?
In a standard 20ft container, 4-Panel FIBCs typically allow 15–20% more bags per load compared to U-Panel, due to the elimination of sidewall bulge.
Q2: Is the Type A 4-Panel FIBC bag more expensive than U-Panel FIBC Bag?
Yes, slightly — the additional stitching adds minor manufacturing cost. However, the freight savings from better container utilisation typically offset this within the first shipment.
Q3: Can I print our company logo on all four panels?
Absolutely. Our 4-colour flexographic printing covers all four side panels, making this bag an excellent branded packaging solution.
Q4: What is the typical GSM for food-grade applications?
We recommend 130–160 gsm with food-grade coating for food ingredient applications. Our team can advise on the optimal specification for your product.
Get a quote for 4-Panel FIBC bags. Tell us your product, weight, and target price — we’ll engineer the right solution.
